Marine VDO Ammeter Gauge
VDO Marine ViewLine Ammeter 60A Black 52mm
VDO Ammeter Gauges
Black - Bezel black round
Panel hole diameter: 52 mm - 2 1/16"
Range: -60A to +60A DC
Input signal: -60 to +60 mV
Lens: Dual - Anti-Fog
Exchangeable clip-on bezels
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: |
52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch |
| Installation depth: |
50 mm |
| Locking height with Spinlock nut: |
0.5 mm - 20 mm |
| Locking height with bracket: |
2 mm - 15 mm (Optional) |
| Flushmount: |
Optional kit A2C59510864 |
Functionality:
| Ampere measurement range: |
-60A to +60A DC |

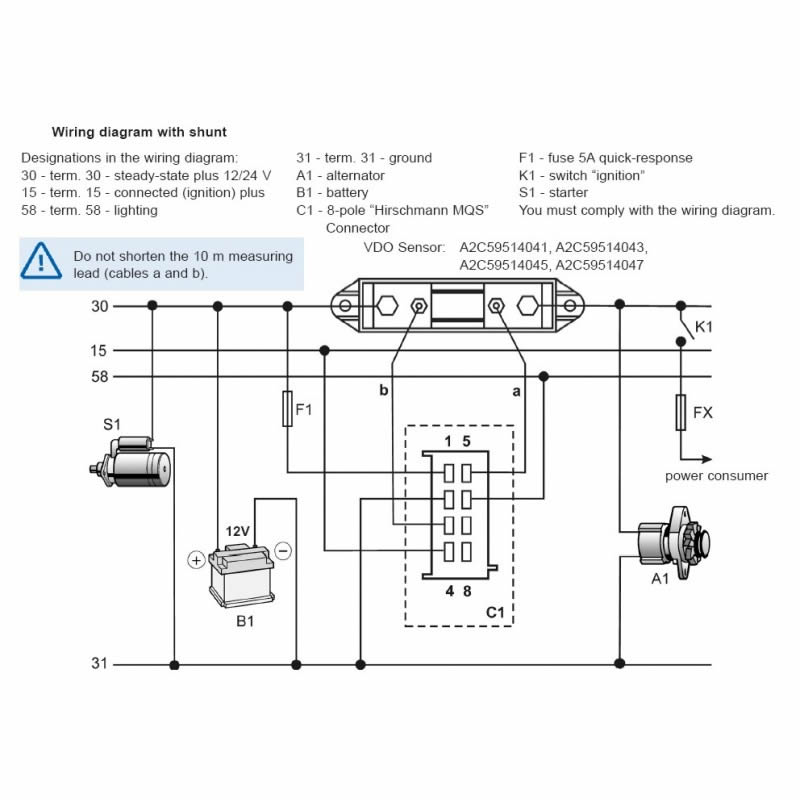

| Shunt: |
Not included |
| Signal input ammeter: |
Veratron Shunt 0 to 60 mV DC |
| Accuracy: |
< 2.5 % of the full scale reading |
| Connection: |
Hirschmann 8 pins MQS connector |
Power supply:
| Operating voltage: |
8 to 32 Volt DC |
| Current consumption: |
< 140 mA including warning LED |
| Reverse polarity protection: |
Yes - 5 Minutes |
| Short circuit protection: |
Yes - 1 Minute |
Dial & Pointer:
| Deflection angle: |
240° |
| Dial colour: |
Black |
| Dial Illumination: |
Amber LED backlight 605nm |
| Pointer: |
White LED backlight |
| Warning LED: |
Red (632nm) |
Design:
| Model: |
Veratron ViewLine Marine |
| Lens: |
Dual - Anti-glare - Anti-Fog |
| Standard bezel: |
Round black (Interchangeable) |
Protection and standards:
| Front protection class: |
IP67 (IEC 60529) |
| Rear protection class: |
IP52 |
| Relative humidity: |
Maximum 95% |
| Operating temperature: |
-30°C to +80°C (Plastic bezel) |
| CE standard: |
Yes |
| DNV GL Certification: |
Yes |
| Mechanical shock continuous: |
25G - 6ms - 1Hz |
| Mechanical single shock: |
100G - 11ms |
| Free fall test: |
1 Meter - 3x |
| Housing flame retarding: |
UL94-VD |
