VDO Marine ViewLine Ammeter 150A Black 52mm
vdo-marine-ammeter-gauge-150a-black-52-mm
vdo-marine-ammeter-gauge-150a-black-52-mm
VDO Marine ViewLine Ammeter 150A Black 52mm
vdo-marine-ammeter-gauge-150a-black-52-mm
vdo-marine-ammeter-gauge-150a-black-52-mm
Marine VDO Ammeter Gauge

VDO Marine ViewLine Ammeter 150A Black 52mm

VDO Ammeter Gauges

Black - Bezel black round
Panel hole diameter: 52 mm - 2 1/16"
Range: -150A to +150A DC
Input signal: -60 to +60 mV
Lens: Dual - Anti-Fog
Exchangeable clip-on bezels

Sizes and mounting:

Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
Installation depth: 50 mm
Locking height with Spinlock nut: 0.5 mm - 20 mm
Locking height with bracket: 2 mm - 15 mm (Optional)
Flushmount: Optional kit A2C59510864

Functionality:

Ampere measurement range: -150A to +150A DC
Shunt: Not included

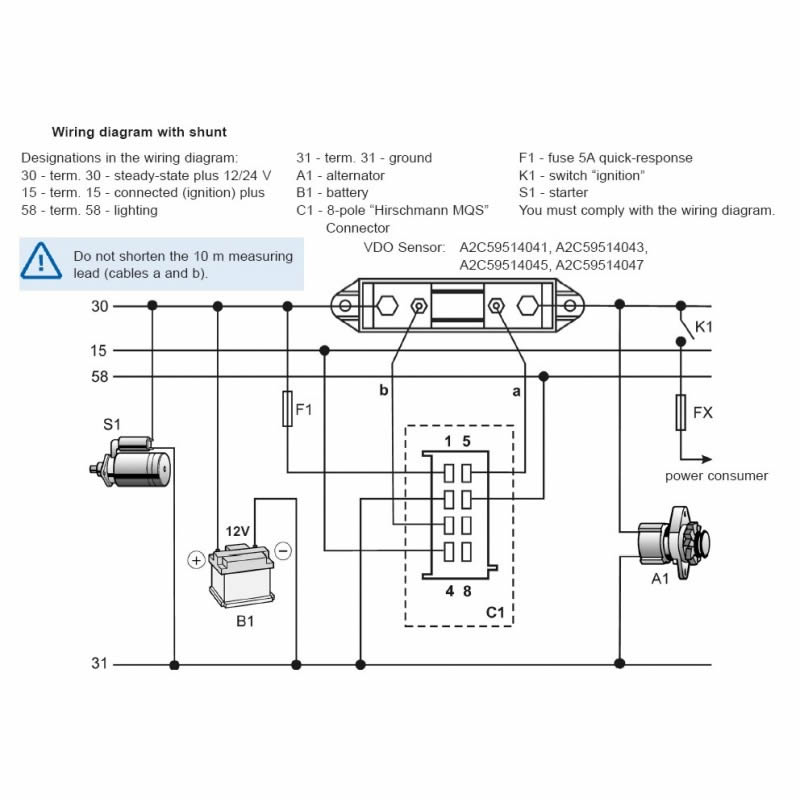

Signal input ammeter: Veratron Shunt 0 to 60 mV DC
Accuracy: < 2.5 % of the full scale reading

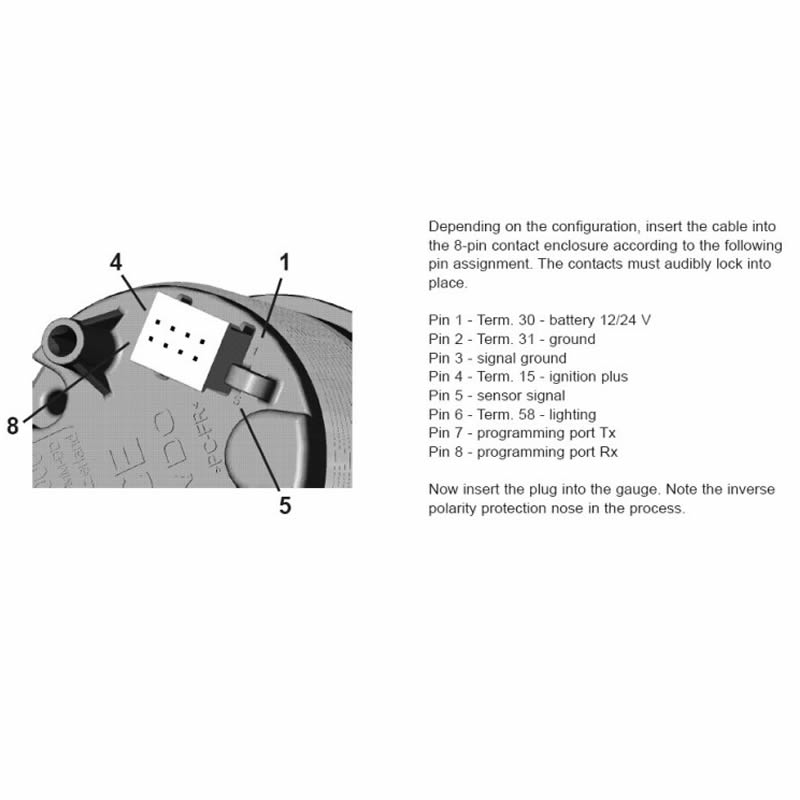

Connection: Hirschmann 8 pins MQS connector

Power supply:

Operating voltage: 8 to 32 Volt DC
Current consumption: < 140 mA including warning LED
Reverse polarity protection: Yes - 5 Minutes
Short circuit protection: Yes - 1 Minute

Dial & Pointer:

Deflection angle: 240°
Dial colour: Black
Dial Illumination: Amber LED backlight 605nm
Pointer: White LED backlight
Warning LED: Red (632nm)

Design:

Model: Veratron ViewLine Marine
Lens: Dual - Anti-glare - Anti-Fog
Standard bezel: Round black (Interchangeable)

Protection and standards:

Front protection class: IP67 (IEC 60529)
Rear protection class: IP52
Relative humidity: Maximum 95%
Operating temperature: -30°C to +80°C (Plastic bezel)
CE standard: Yes
DNV GL Certification: Yes
Mechanical shock continuous: 25G - 6ms - 1Hz
Mechanical single shock: 100G - 11ms
Free fall test: 1 Meter - 3x
Housing flame retarding: UL94-VD

VDO Marine ViewLine Ammeter Gauge 150A Black 52mm: Description

VDO Marine ViewLine Ammeter Gauge 150A Black 52mm

VDO Marine ViewLine Ammeter Gauge 150A Black 52mm: Specifications

Black - Bezel black round
Panel hole diameter: 52 mm - 2 1/16"
Range: -150A to +150A DC
Input signal: -60 to +60 mV
Lens: Dual - Anti-Fog
Exchangeable clip-on bezels

Sizes and mounting:

Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
Installation depth: 50 mm
Locking height with Spinlock nut: 0.5 mm - 20 mm
Locking height with bracket: 2 mm - 15 mm (Optional)
Flushmount: Optional kit A2C59510864

Functionality:

Ampere measurement range: -150A to +150A DC
Shunt: Not included
Signal input ammeter: Veratron Shunt 0 to 60 mV DC
Accuracy: < 2.5 % of the full scale reading
Connection: Hirschmann 8 pins MQS connector

Power supply:

Operating voltage: 8 to 32 Volt DC
Current consumption: < 140 mA including warning LED
Reverse polarity protection: Yes - 5 Minutes
Short circuit protection: Yes - 1 Minute

Dial & Pointer:

Deflection angle: 240°
Dial colour: Black
Dial Illumination: Amber LED backlight 605nm
Pointer: White LED backlight
Warning LED: Red (632nm)

Design:

Model: Veratron ViewLine Marine
Lens: Dual - Anti-glare - Anti-Fog
Standard bezel: Round black (Interchangeable)

Protection and standards:

Front protection class: IP67 (IEC 60529)
Rear protection class: IP52
Relative humidity: Maximum 95%
Operating temperature: -30°C to +80°C (Plastic bezel)
CE standard: Yes
DNV GL Certification: Yes
Mechanical shock continuous: 25G - 6ms - 1Hz
Mechanical single shock: 100G - 11ms
Free fall test: 1 Meter - 3x
Housing flame retarding: UL94-VD

Marine ViewLine Ammeter 150A Black 52mm: Product Information

Data sheet

Voltage Measurement range
-150A - 0 - 150A DC
Warning light
Red LED Via plus and min
Operating voltage
8 - 32 Volt DC
Packaging
VDO Instrument retail
Application
VDO Engine monitoring
Signal analogue
0 - 60 mV Shunt
Serie
Veratron ViewLine Retail
Lens
Plastic double anti-fog
Color
Black
IP Class front
IP67 (IEC 60529)
Input
Analog
Installation dimension
52 mm - 2 1/16 Inch
Functionality
Charge- and discharge current
Bezel Interchangeable
Yes - Clip-on
Bezel model
Black round
Communication
Analog
Category
Ammeter gauges
Article status
Orderable
