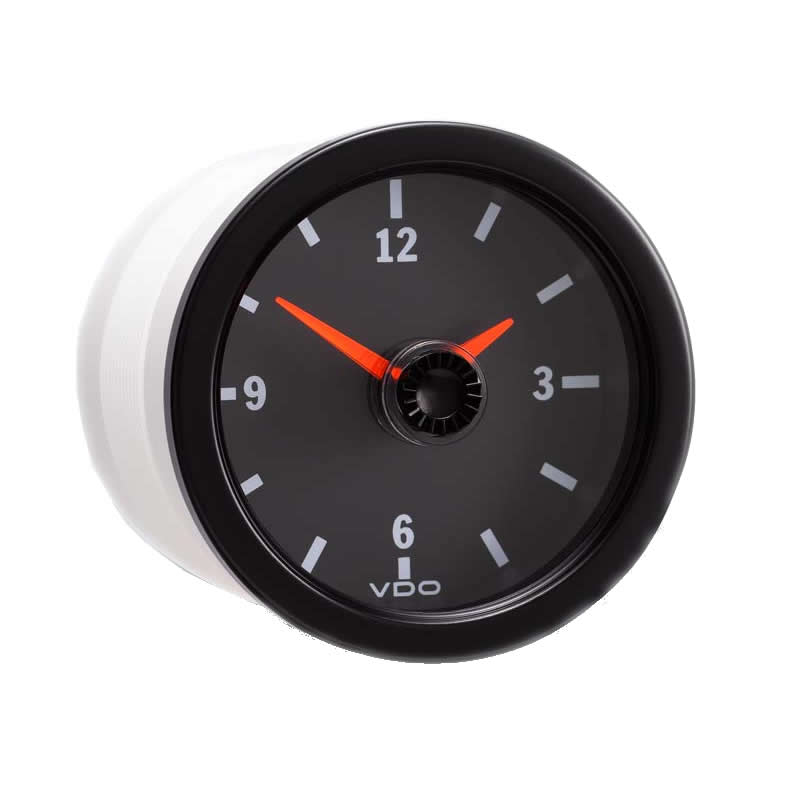

VDO Quartz clock Gauge 24V
The VDO Quartz Clock offers accurate timing to within ±1 second per day. The crystallographic properties of quartz ensure that the electric current is precisely regulated for accurate timing.
VDO Quartz clock 52mm 24V Specifications:
Colour: Black
Panel hole diameter: 52 mm - 2 1/16"
Time scale analoog: 0 to 12 hour
Operating voltage: 24 Volt DC
VDO Cockpit International 370 214 031 001G specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: |
52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
| Installation depth: |
53 mm |
| Locking height with Spinlock nut: |
0.5 mm - 20 mm |
| Locking height with bracket: |
Not available |
| Flushmount: |
None |
Functionality:
| Measurement range: |
0 - 12 H |
| Time adjustment: |
Pushbutton |
| Accuracy: |
Not specified by VDO |
| Connection: |
AMP Male blade connector 6,3 x 0,8mm (2x) |
| Illumination connection: |
AMP Male blade connector 6,3 x 0,8mm |
Power supply:
| Operating voltage: |
11 - 16 Volt DC |
| Current consumption without illumination: |
< 10 mA |
| Reverse polarity protection: |
Yes |
| Short circuit protection: |
Not specified by VDO |
Dial & Pointer:
| Deflection angle: |
360° |
| Dial colour: |
Black |
| Dial Illumination: |
Floodlight 12V - 3.4 Watt White - Green - Red and 24V - 3 Watt - Optional |
| Pointer: |
Red backlight |
| Warning indication: |
None |
| Programming: |
None |
Design:
| Model: |
Cockpit International |
| Lens: |
Single - Anti-glare |
| Standard bezel: |
Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: |
IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: |
IP42 (DIN 40050) |
| Relative humidity: |
Not specified by VDO |
| Operating temperature: |
-30°C to +85°C |
| CE standard: |
Yes |
| DNV GL Certification: |
Not specified by VDO |
| Mechanical shock 8 hours: |
Max: 1G - 25Hz - 2000Hz |
| EMC test: |
According to EN 13309 and ISO 13766 |
| Nominal position: |
NL 0 to NL 90 - DIN 16257 |
| Housing: |
Plastic flame retardant |
